The LADBS NEC Standard Electrical Load Calculation form is a crucial document used to determine the electrical load requirements for new construction and major renovations in Los Angeles. This form ensures that electrical systems are designed to meet safety standards and efficiently serve the intended use of the building. Proper completion of the form is essential for compliance with the National Electrical Code and local regulations.
The LADBS NEC Standard Electrical Load Calculation form serves as an essential tool for electrical engineers, contractors, and building professionals engaged in the design and installation of electrical systems. This form streamlines the process of determining the electrical load requirements for various types of buildings, ensuring compliance with the National Electrical Code (NEC) standards. By outlining specific categories such as lighting, receptacles, and equipment loads, the form provides a structured approach to calculating total electrical demand. Users must consider factors like the square footage of the space, the intended use of each area, and the diversity factors that apply to different electrical loads. Additionally, the form emphasizes the importance of accurate calculations to prevent overloading circuits and to promote safety in electrical installations. With clear sections for inputting data and guidelines for interpreting results, the LADBS NEC Standard Electrical Load Calculation form not only aids in regulatory compliance but also enhances the overall efficiency of electrical design projects.
When filling out the LADBS NEC Standard Electrical Load Calculation form, it's important to follow certain guidelines to ensure accuracy and compliance. Here are ten things you should and shouldn't do:
When filling out and using the LADBS NEC Standard Electrical Load Calculation form, consider the following key takeaways:
Roof Certification Form Florida - Certification includes the contractor's name and contact details.
Test Drive Agreement Form - Include your work phone number for additional contact options.

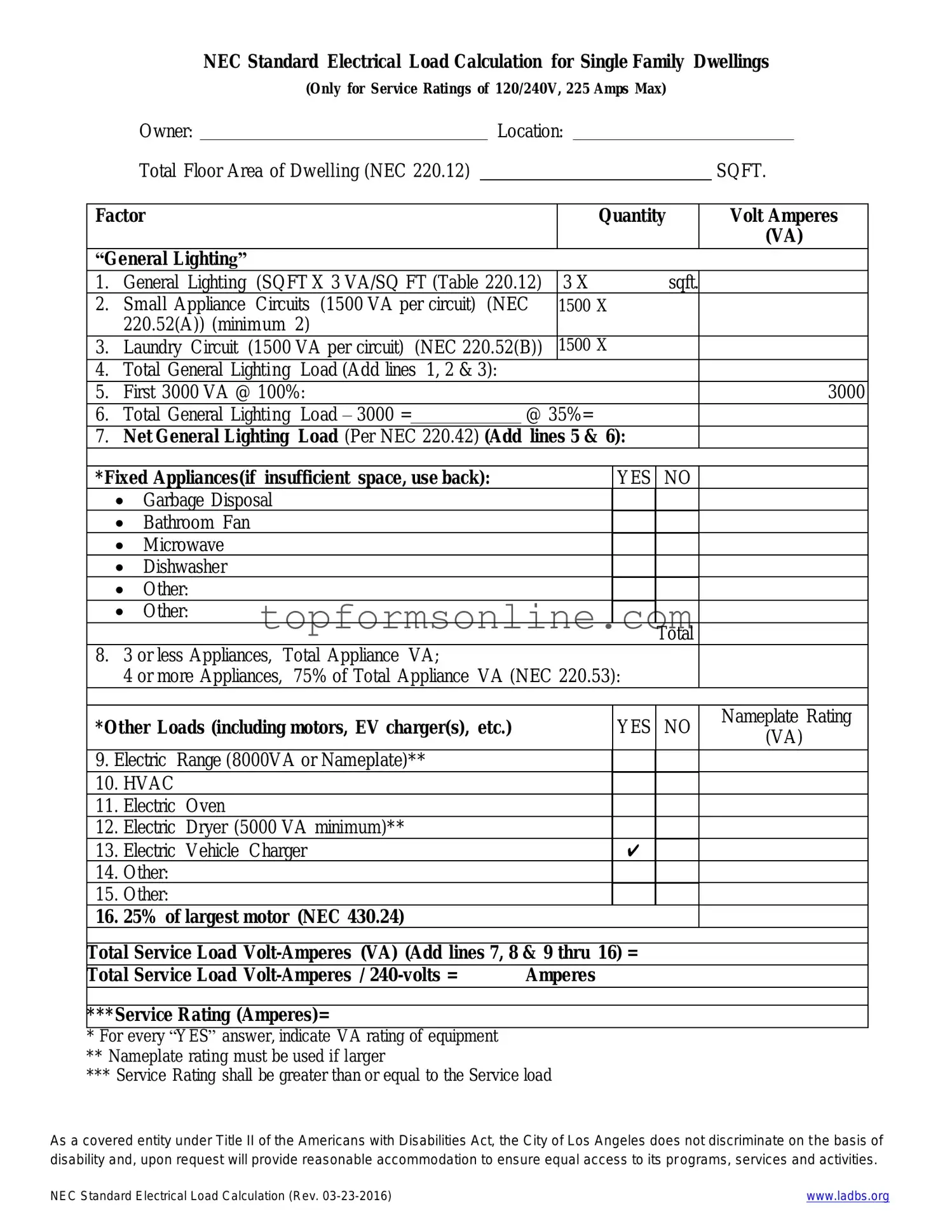

NEC Standard Electrical Load Calculation for Single Family Dwellings
(Only for Service Ratings of 120/240V, 225 Amps Max)
Owner:
Location:
Total Floor Area of Dwelling (NEC 220.12)
SQFT.
Factor
Quantity
Volt Amperes
(VA)
“General Lighting”
1.
General Lighting (SQFT X 3 VA/SQ FT (Table 220.12)
3 X
sqft.
2.
Small Appliance Circuits (1500 VA per circuit)
(NEC
1500 X
220.52(A)) (minimum 2)
3.
Laundry Circuit (1500 VA per circuit) (NEC 220.52(B))
4.
Total General Lighting Load (Add lines 1, 2 & 3):
5.
First 3000 VA @ 100%:
3000
6.
Total General Lighting Load – 3000 =
@ 35%=
7.
Net General Lighting Load (Per NEC 220.42) (Add lines 5 & 6):
*Fixed Appliances(if insufficient space, use back):
YES
NO
Garbage Disposal
Bathroom Fan
Microwave
Dishwasher
Other:
Total
8.
3 or less Appliances,
Total Appliance VA;
4 or more Appliances,
75% of Total Appliance VA (NEC 220.53):
*Other Loads (including motors, EV charger(s), etc.)
Nameplate Rating
9. Electric
Range (8000VA or Nameplate)**
10. HVAC
11.
Electric
Oven
12.
Dryer (5000 VA minimum)**
13.
Vehicle Charger
✔
14.
15.
16.
25% of largest motor (NEC 430.24)
Total Service Load Volt-Amperes (VA) (Add lines 7, 8 & 9 thru 16) =
Total Service Load Volt-Amperes / 240-volts =
Amperes
***Service Rating (Amperes)=
*For every “YES” answer, indicate VA rating of equipment
**Nameplate rating must be used if larger
***Service Rating shall be greater than or equal to the Service load
As a covered entity under Title II of the Americans with Disabilities Act, the City of Los Angeles does not discriminate on t he basis of disability and, upon request will provide reasonable accommodation to ensure equal access to its programs, services and activities.
NEC Standard Electrical Load Calculation (Rev. 03-23-2016)
www.ladbs.org
The LADBS NEC Standard Electrical Load Calculation form is a critical tool for ensuring that electrical systems are designed safely and effectively. However, several misconceptions can lead to confusion among users. Below is a list of common misunderstandings associated with this form.
Understanding these misconceptions can lead to better preparation and compliance when working with the LADBS NEC Standard Electrical Load Calculation form. Clear communication and accurate information are key to navigating the requirements successfully.
The LADBS NEC Standard Electrical Load Calculation form is a crucial document for assessing electrical loads in various settings. Several other documents serve similar purposes, providing essential information for electrical planning and safety. Here’s a list of nine documents that share similarities with the LADBS form:
Each of these documents plays a vital role in electrical planning and safety, highlighting the importance of accurate load calculations in various contexts.
